Hydrolift

The Hydrolift bridges 1 to 6 steps, and can be installed in outdoor and indoor environments. It can be installed at Heritage-Listed sites and protected buildings, in stairways as well as in buildings with offset floors. The Hydrolift is driven hydraulically and uses a site-specific PLC system to control the operation and safety mechanisms of the lift. Operating the lift can be accomplished through the use of a mounted Control Pillar on the lift or with a Hand-held remote control. The Hydrolift is fitted with various safety mechanisms for the safety of the occupant and passersby. The Roll-off Protection prevents the occupant from overshooting the platform while parking his or her wheelchair. The Underrun Protection provides protection where the lift edge and pit edge pass one another so that no injury or damage is caused. The Pit Safety Plate stops the lift if someone or something enters the lift pit during travel. The optical and acoustic signals coming from the lift alert others in the area that the lift is currently in operation.

Characteristics:

  • Flush-to-floor installation
  • Large carrying capacity
  • Car/Truck traversable
  • Time-efficient installation
  • Ideal for Heritage Buildings
  • Cost-efficient
  • Remote control operation
  • for Indoor and Outdoor application
  • Installation in escape way possible
  • Hydrolift
  • Hydrolift
  • Hydrolift
  • Hydrolift
  • Hydrolift
  • Hebelift Hydrolift
  • Hebelift Hydrolift
  • Hebelift Hydrolift
  • Hebelift Hydrolift
  • Hebelift Hydrolift
  • Hebelift Hydrolift
  • Hebelift Hydrolift
  • Hebelift Hydrolift
  • Hebelift Hydrolift

Technical Data:

  • Platform: 1100 mm x 1400 mm (Standard)
  • Lifting height: until 1300 mm
  • Pit deep: min. 190 mm + Bodenbelag
  • Pit dimensions: 1230 mm x 1530 mm
  • Speed:up to 0.15 m/s
  • Lifting Capacity:
  • Electrical Connection:: 230 V / 10 A
nach oben

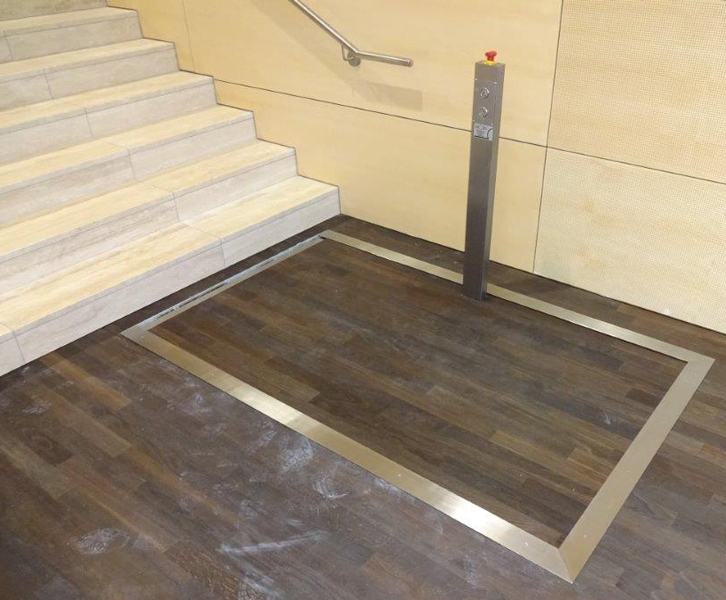

HydroTelescope HT1 / HT2

Our Hydrotelescope Lift is distinguished by a compact construction. Thanks to the telescopic support bars, the pit is about 400 mm shorter than in the standard. The traversable and drivable platform can have variable size, shape and flooring.

  • Hydrotelescope
  • Hydrotelescope
  • Hydrotelescope
  • Hydrotelescope
  • Hydrotelescope
  • Hydrotelescope
  • Hydrotelescope
  • Hydrotelescope
  • Hydrotelescope
  • Hydrotelescope
  • Hydrotelescope
  • Hydrotelescope
  • Hydrotelescope

Technical Data HT1

  • Lifting height:900mm
  • Platform 1400 mm x 1100 mm
  • Pit deep:180 mm + Flooring
  • Pit dimensions: 1550 mm x 1230 mm
  • Lifting Capacity:400kg
  • Electrical Connection: 230 V / 10 A

Technical Data HT2

  • Lifting height:1200mm
  • Platform: 1800 mm x 1100 mm
  • Pit deep:190 mm + Flooring
  • Pit dimensions: 1950 mm x 1230 mm
  • Lifting Capacity:400kg
  • Electrical Connection: 230 V / 10 A

HydroTelescope 100 (HT100)

Our Hydrotelescope 100 Lift is our most compact model. Thanks to the telescopic support bars, as well as a special 3-cylinder arrangement, the pit depth has now been reduced by about 80mm from the 180mm standard, as found in the Hydrotelescope 1. The traversable and drivable platform can still have variable size, shape and flooring.

  • Hydrotelescope HT100
  • Hydrotelescope HT100
  • Hydrotelescope HT100
  • Hydrotelescope HT100
  • Hydrotelescope HT100

Technical Data

  • Lifting height:up to 750mm
  • Platform: (standard) 1100 x 1400 mm
  • Speed: up to 0.15 m/s
  • Lifting Capacity:up to 400 kg
  • Electrical Connection: 230 V / 10 A
