Platformlift SL 250 Deutsch English

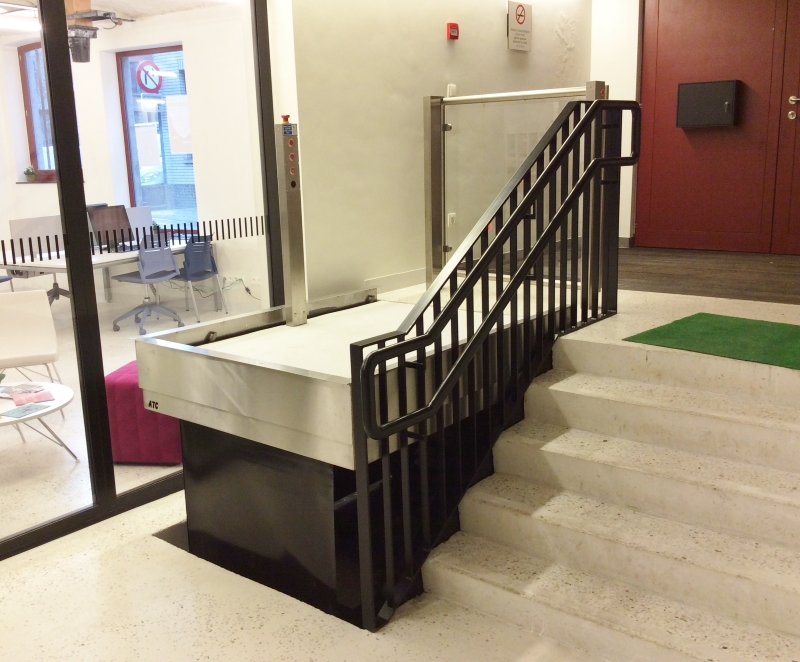

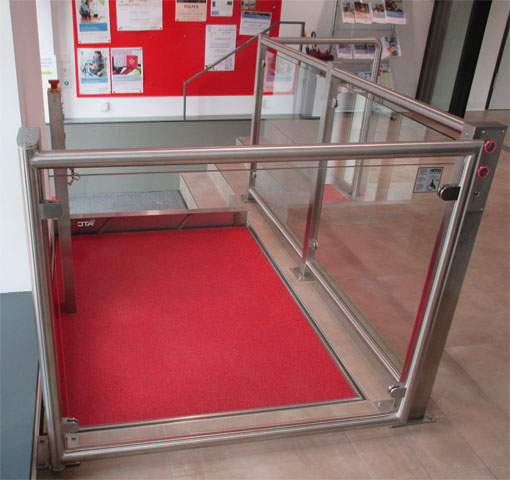

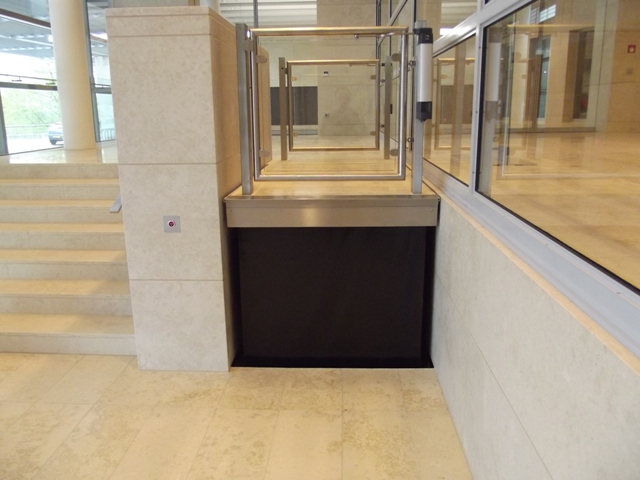

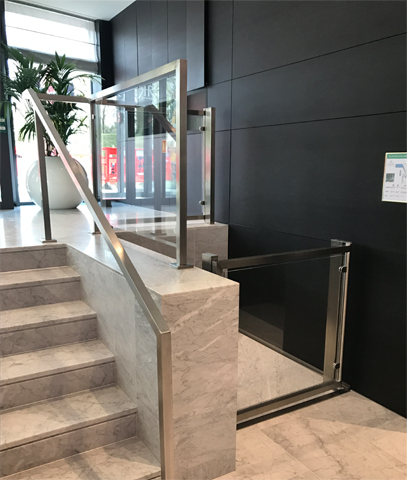

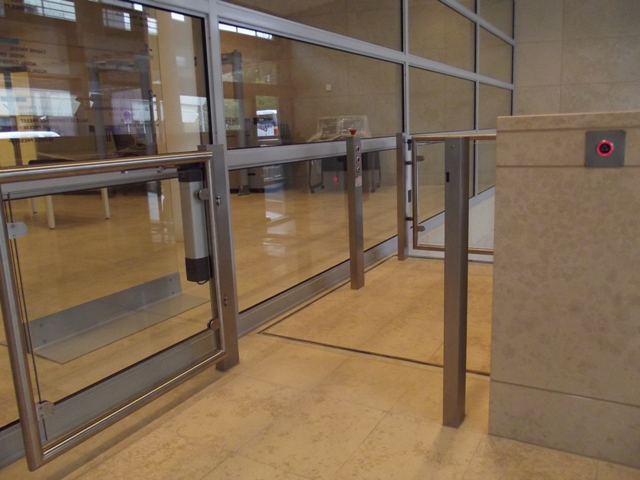

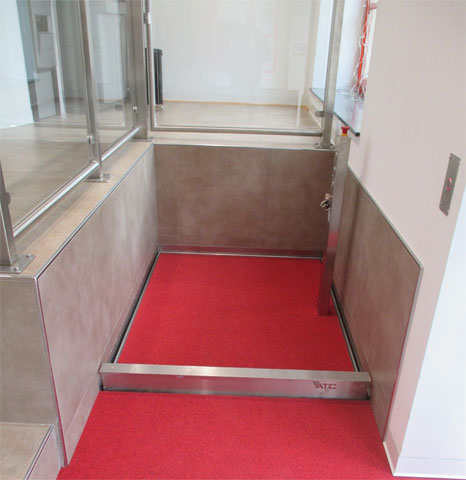

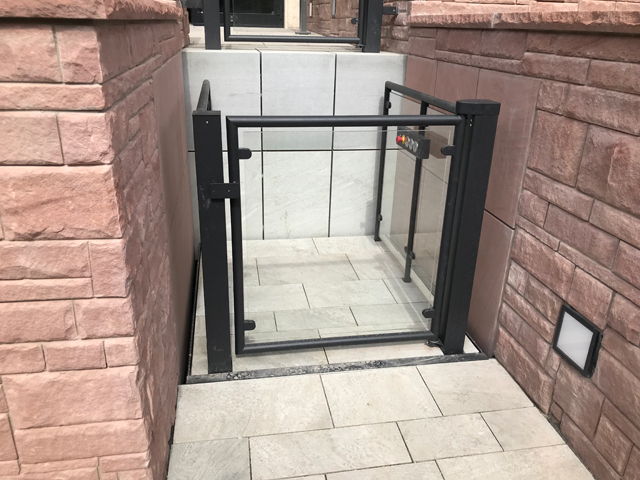

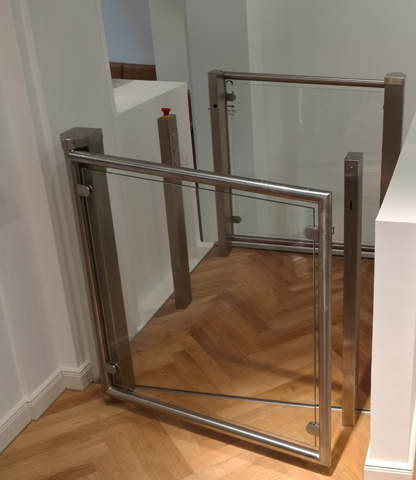

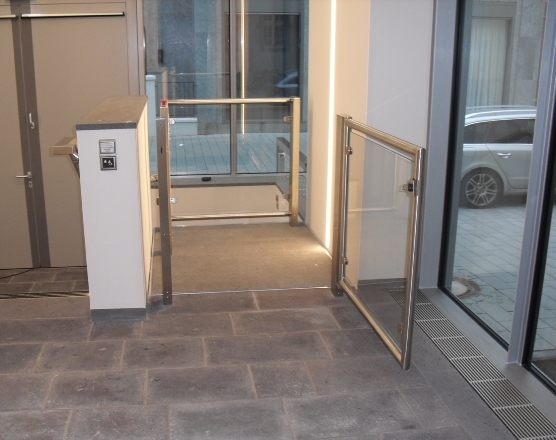

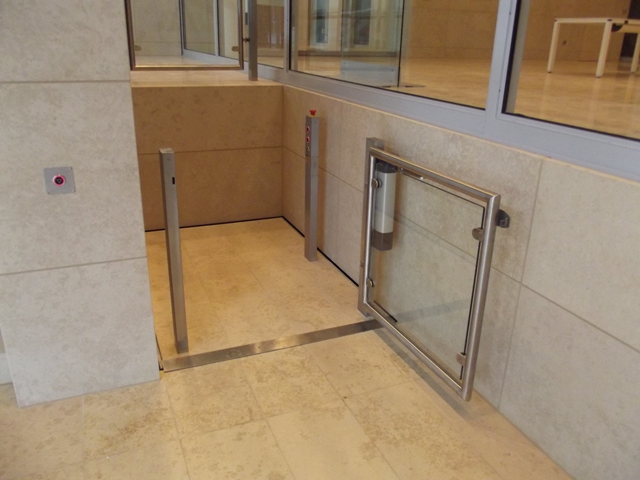

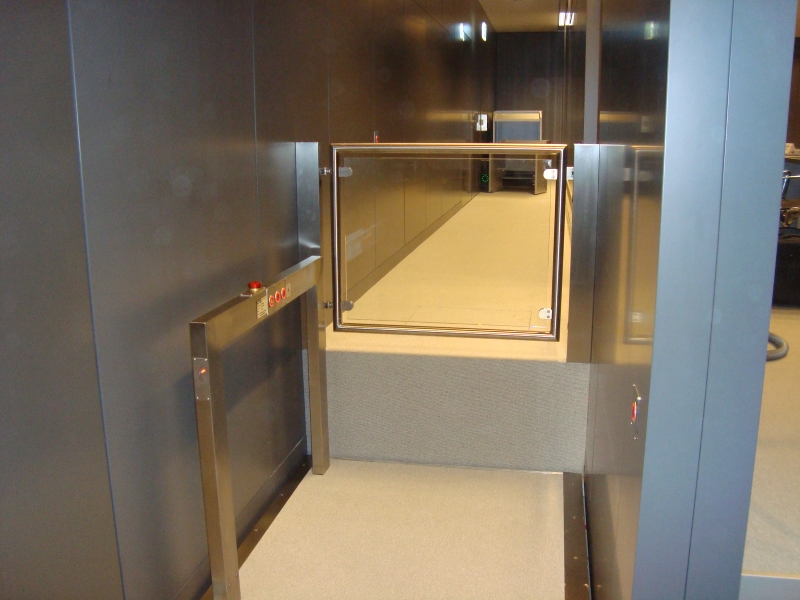

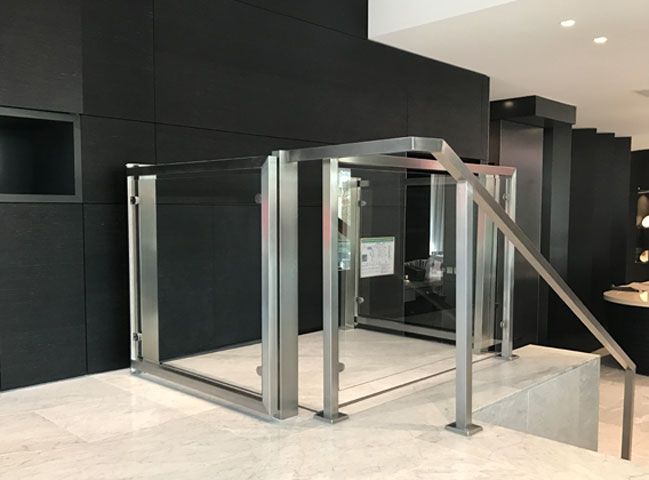

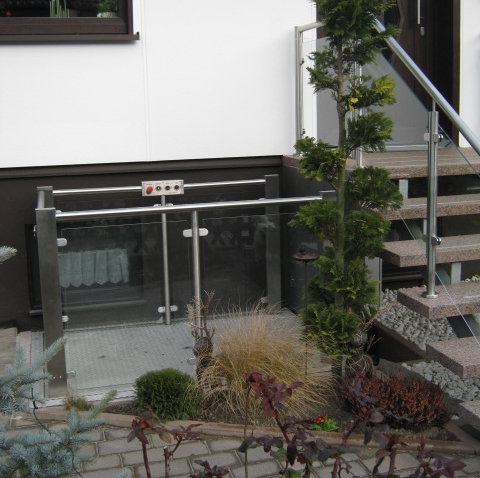

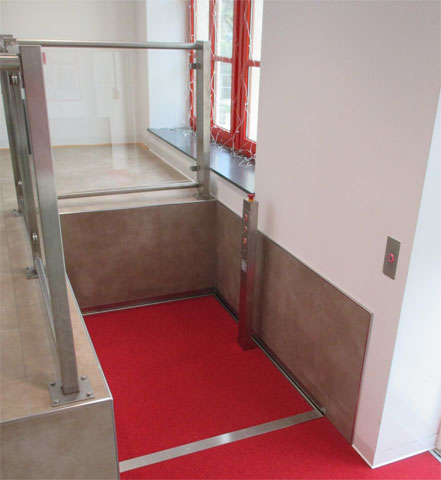

The SL250 is a compact platform lift solution for heights up to 1000 mm. With Hydraulic Roll-off Protection, this lift is suitable for wheelchair users. As additional options, a handrail and doors make this lift also a suitable solution for standing persons. All according to the wishes of the client.

Characteristics

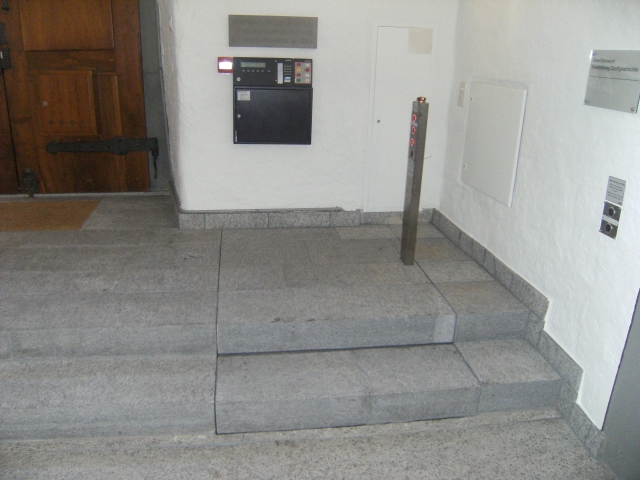

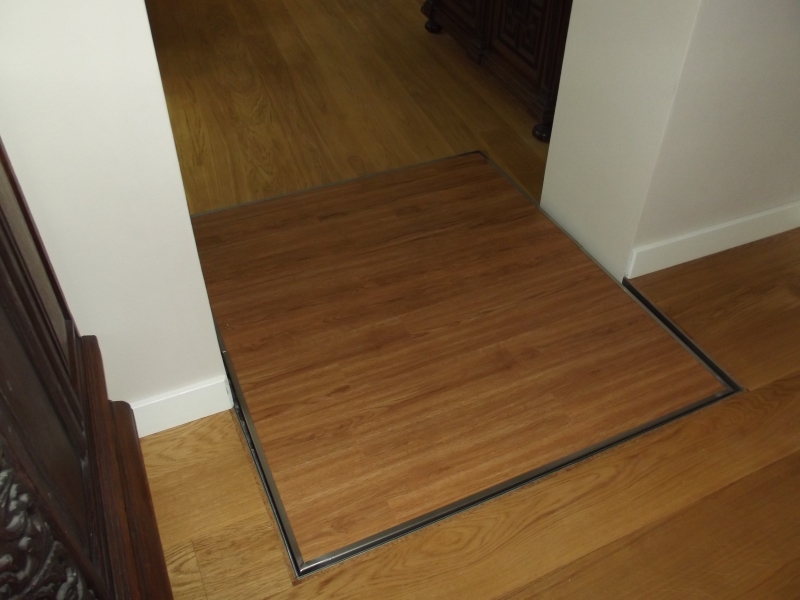

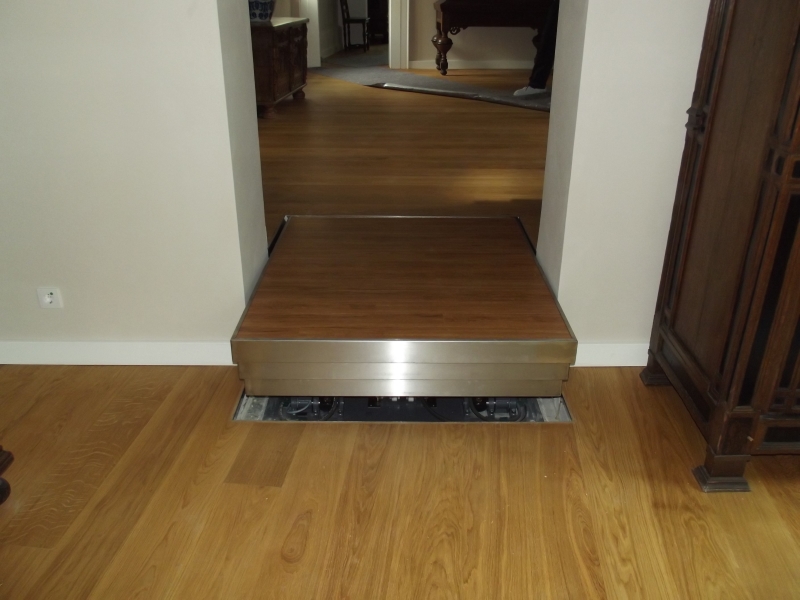

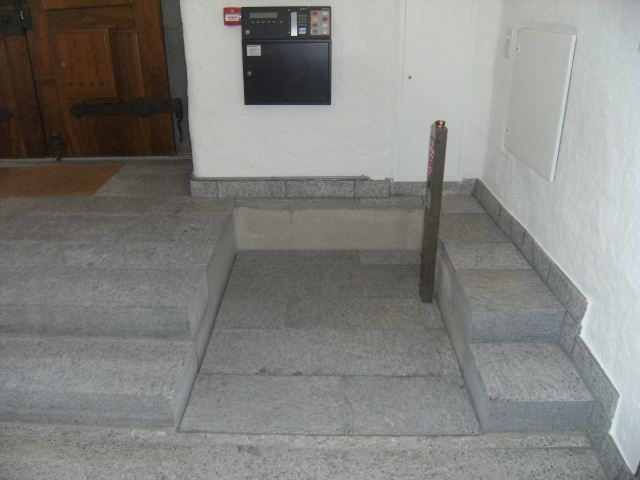

  • Flush-to-floor installation
  • Car/Truck traversable (Can be driven over)
  • with Remote control operation

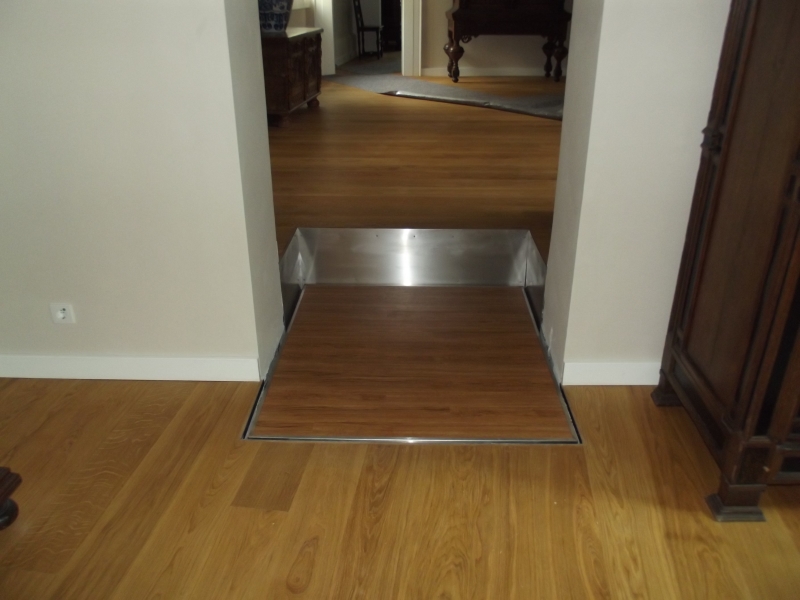

  • with Roll-Off Protection

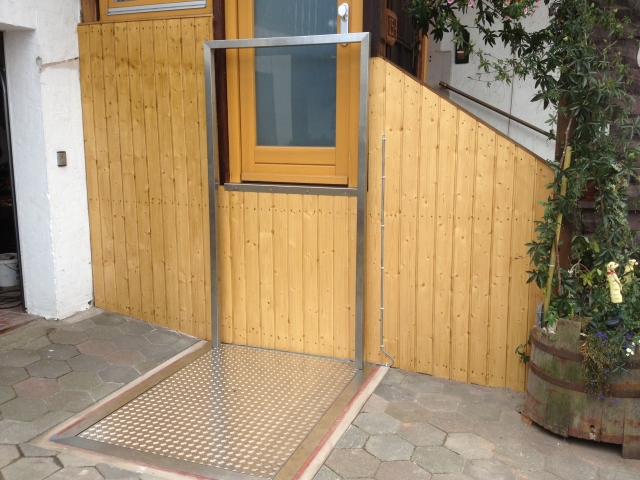

  • for Indoor and Outdoor application
  • Minimal Pit Depth: only 80 mm ( + flooring thickness)
  • Controller and Hydraulics in a separate Cabinet
  • Hydrolift, Hublift, Hebebühne
  • Hydrolift, Hublift, Hebebühne
  • Hydrolift, Hublift, Hebebühne
  • Hydrolift, Hublift, Hebebühne
  • Hydrolift, Hublift, Hebebühne
  • Hydrolift, Hublift, Hebebühne
  • Hydrolift, Hublift, Hebebühne
  • Hydrolift, Hublift, Hebebühne
  • Hydrolift, Hublift, Hebebühne
  • Hydrolift, Hublift, Hebebühne
  • Hydrolift, Hublift, Hebebühne
  • Hydrolift, Hublift, Hebebühne
  • Hydrolift, Hublift, Hebebühne
  • Hydrolift, Hublift, Hebebühne
  • Hydrolift, Hublift, Hebebühne
  • Hydrolift, Hublift, Hebebühne
  • Hydrolift, Hublift, Hebebühne
  • Hydrolift, Hublift, Hebebühne
  • Hydrolift, Hublift, Hebebühne
  • Hydrolift, Hublift, Hebebühne
  • Hydrolift, Hublift, Hebebühne
  • Hydrolift, Hublift, Hebebühne

Technical Data:

  • Platform: 1100 x 1400 mm Standard
  • min. installation height: 80 mm by lifting height 760 mm
  • max. installation height: 300 mm by lifting height 1700 mm
  • Lifting height: 1700 mm
  • Speed:max. 0,08 m/s
  • Lifting Capacity: up to 500 kg

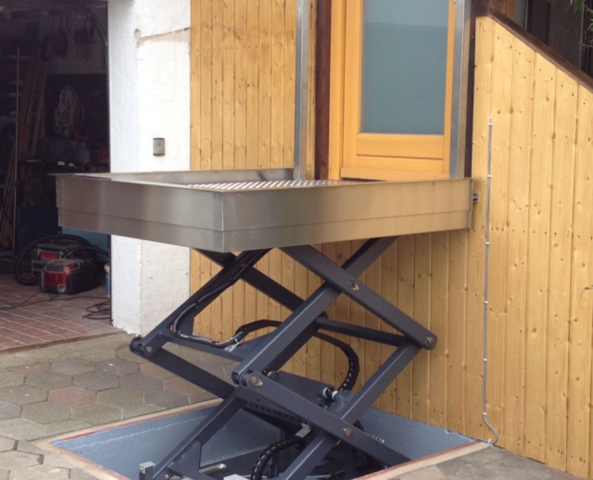

  • Lifting means: Hydraulic Drive
  • Electrical Connection: 230 V / 50 Hz
